POINT CLOUD MODELING SERVICES

Point Cloud Modeling Services

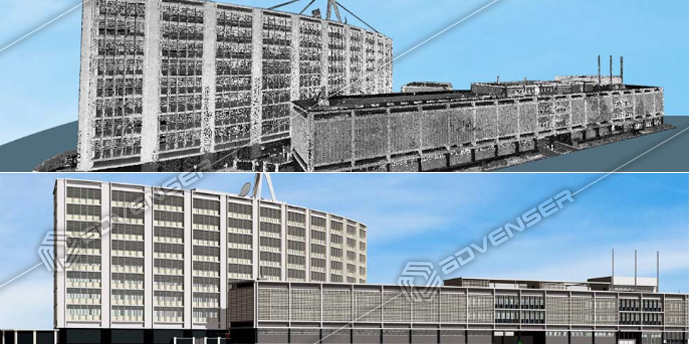

We offer pin point accurate point cloud modeling as an added value service along with our BIM (building information modeling) services, both as a stand-alone development and as an integral component of the project life-cycles. We have the capabilities to re-model the point cloud into Revit for comparison to as built models or provide background information for alterations or refurbishment and have successfully delivered a wide range of highly detailed Architectural, Structural and MEP BIM models based on cloud scan data. We employ various BIM enabled software such as Revit Suite, 3ds Max and Trimble Sketchup for converting the point cloud into fully functional BIM models. We have executed scan to BIM services for major construction companies and contractors for their refurbishment or renovating projects. We have also worked on projects where we had to create BIM models for new elements along with remodeling of existing elements.

service

Categories of scan to BIM services we offer

The following are the categories of scan to BIM services we offer to the AEC industry.

  • Architectural Elements: Internal/external walls, doors, windows, floors, ceiling
  • Structural members: Beams, columns, trusses, stairs, braces, handrails, joists

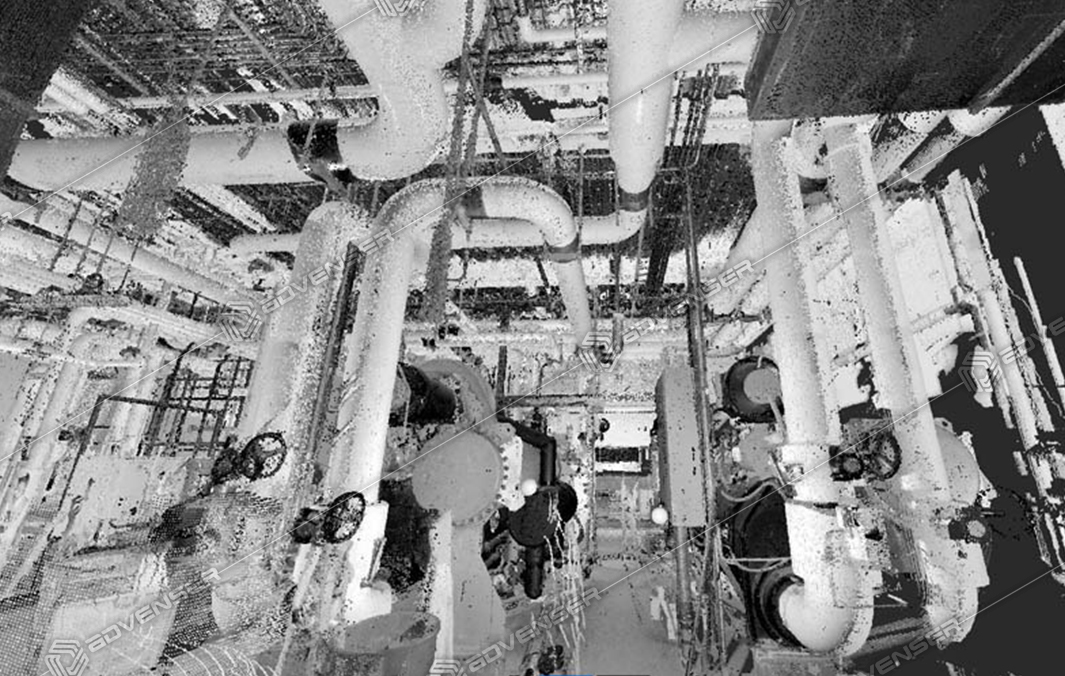

  • MEP services: Pipes, ducts, hangars, panels, cable trays, pumps, fittings & valves, equipments, electrical fixtures etc.
  • Integrated project: As-built model of architectural, structural & MEP
  • Revit family recreation
pointcloud bim
pointcloudto
pointcloudto
Point Cloud Bim

Deliverables for point cloud modeling

  • 3D BIM Models
  • BIM Integration
  • As-built Documentation
  • Elevation Drawings
  • Plan View Drawings
  • Advenser employs the following software for point cloud scan to BIM conversion

    • AutoCAD
    • Civil 3D
    • Inventor
    • Navisworks Manage
    • Revit Suite
    • 3ds Max
    • Trimble SketchUp

    MEP POINT CLOUD MODELING

    STRUCTURAL POINT CLOUD MODELING

    INTEGRATED POINT CLOUD MODELING

    POINT CLOUD TO
    MESH

    POINT CLOUD TO MESH

    ARCHITECTURAL POINT
    CLOUD MODELING
