ARCHITECTURAL POINT CLOUD MODELING

Architectural Point Cloud Modeling

Advenser offers Point Cloud to As built modeling services with pin point dimensional accuracy and impeccable quality. Using your point cloud files, we can deliver a consolidated or standalone architectural BIM model of for all building elements such as Internal/external walls, doors, windows, floors, ceiling, furniture, utilities etc. We have successfully delivered a large number of scan to BIM projects for major construction companies, general contractors and builders for building renovation and refurbishment projects.

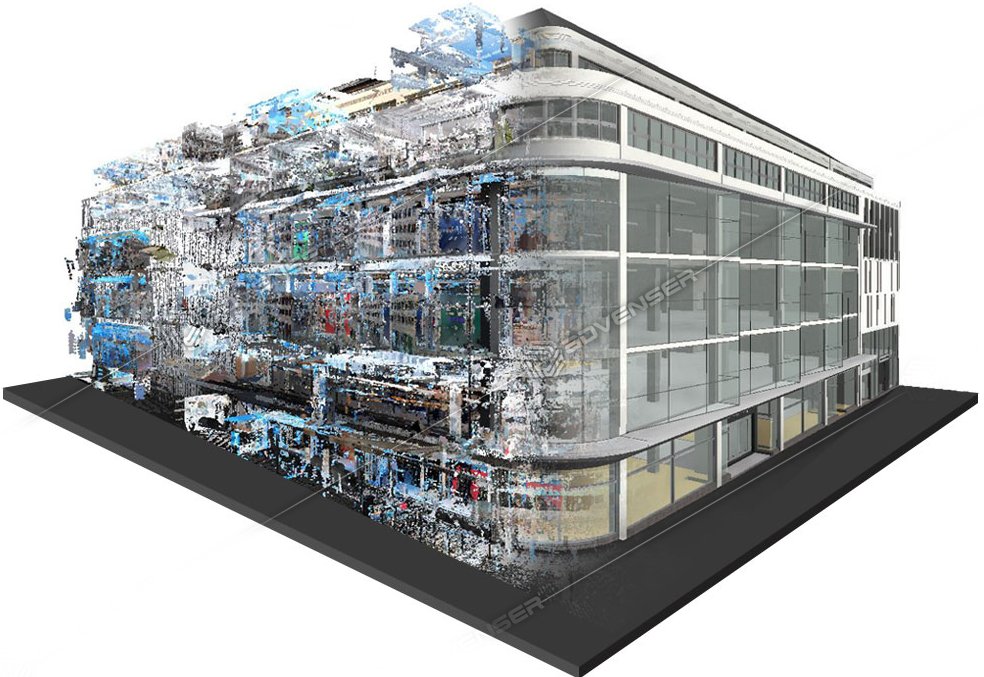

Point cloud model of a commercial building

Practical Applications of Architectural Point Cloud Modeling

If you are an architect, civil engineer or general contractor, the as built architectural BIM model creation using point cloud scan can help you in the following ways:

(i) Surveying and analyzing existing site or building conditions before construction
(ii) Creating coordinated documents between existing and proposed architectural elements
(iii) Generating as built architectural model post construction covering deviations from design drawings
(iv) As part of As built documentation set for submission
(v) For facility management and maintenance
(vi) Safe demolition of targeted area without disrupting other areas

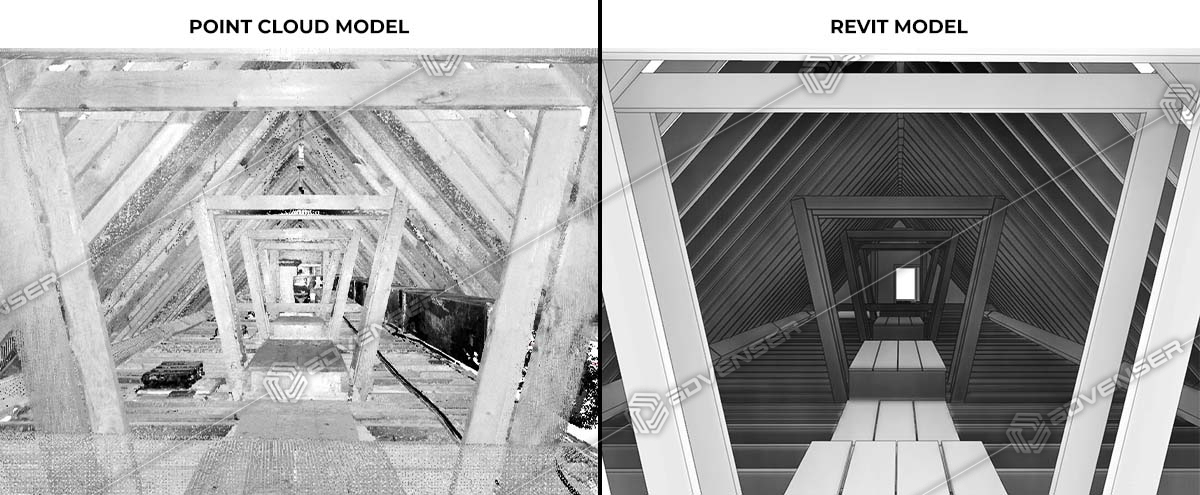

Point cloud to BIM model for a commercial building

We offer the following Point Cloud Modeling of following elements apart from architectural:

  • MEP services: (Pipes, ducts, hangars, panels, cable trays, pumps, fittings & valves, equipments, electrical fixtures etc.)
  • Structural members: (Beams, columns, trusses, stairs, braces, handrails, joists)
  • Integrated BIM project: (Consolidated As-built model of architectural, structural & MEP)
  • Revit family recreation
  • Advenser deliverables for point cloud modeling
  • 3D BIM Models
  • BIM Integration
  • As-built Documentation
  • Elevation Drawings
  • Plan View Drawings

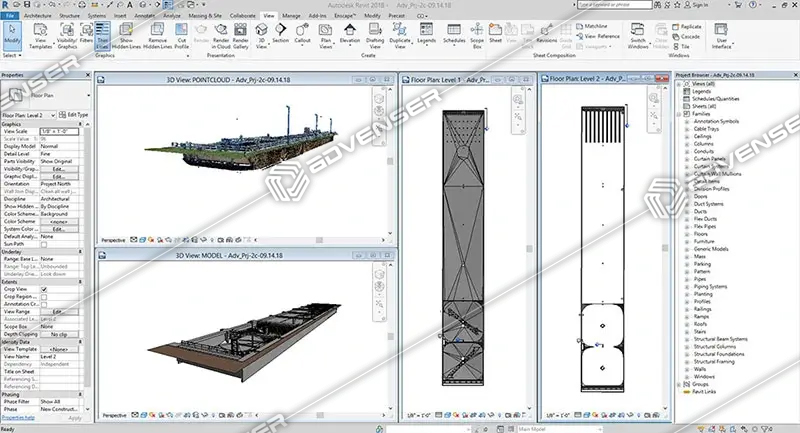

    • Quantity takeoff
